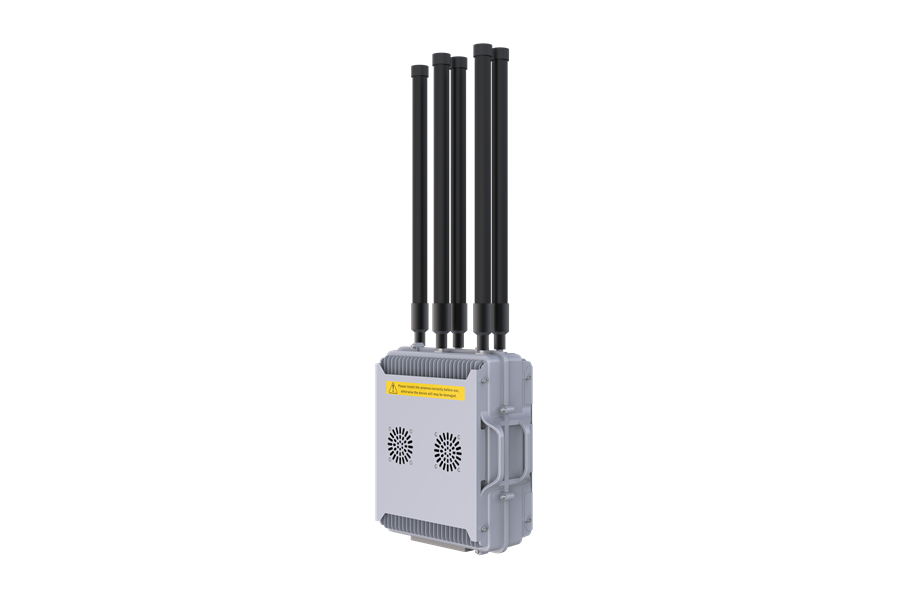

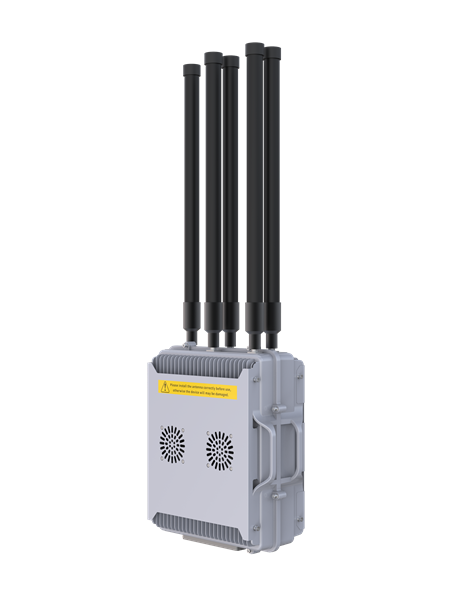

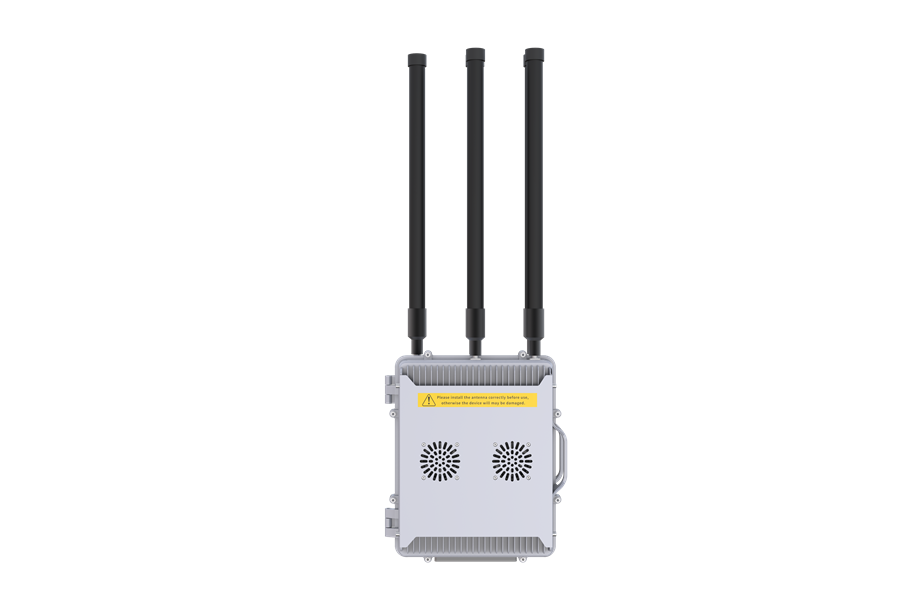

Software-defined Jamming Bands Omnidirectional Jammer

NI-JA3000

The Photoelectric Interference Integrated Equipment is mainly composed of a jammer unit, an optoelectronic tracking unit and a servo turntable. By transmitting electromagnetic waves, it interferes with the satellite navigation signal of the drone or blocks the communication link between the drone and the remote controller, so as to cause the drone to make the drone forced to land or return. The interference unit supports independent or combined output of multiple interference channels. The photoelectric tracking unit can be configured with visible light and thermal imaging dual-light cameras, with all-day (day/night) tracking and forensics capabilities.

Features

  • Software-Defined Jamming Bands

    300MHz–6GHz software-defined full-band jamming， covering most commercial drone communication/navigation bands. Enables real-time configuration of key jamming parameters (common drone frequencies, scanning cycles, signal source types, strike duration)

  • High Jamming Performance

    Supports multiple modulation formats (FSK, BPSK, QPSK, QAM, 16QAM, 64QAM, OFDM) to effectively counter consumer & unconventional drones. Over 100W per amplifier ensures countering anti-jamming latest drones.

  • Precision Jamming

    Leverages radio decryption of underlying protocols, adopting narrowband, frequency-hopping & follow-up jamming for targeted point-to-point disruption of drone signal chains to force hovering/return.

  • Active Heat Dissipation

    Optimized for high power dissipation, adopts active heat dissipation to ensure equipment efficiency & reliability.

Product parameters
Frequency Band300MHz-6Ghz
Typical jamming frequency band400MHz, 600MHz, 800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz (each frequency band can be turned on or off)
Jamming Distance3km (0.1W radiation source)
Transmit Poweraround 100W per band
Jamming AngleHorizontal direction: 360°
Jamming Effective Time≤3s
Power Consumption≤1600W
Power Supply RequirementsAC220V±10%, 50Hz
Size≤470mm×400mm×170mm（without antenna）
Weight≤20KG
